3-Axis Gimbal Control Interface
As a research assistant, I developed control software for a motorized pan-tilt-roll camera gimbal driven by the PINE Controller from Blackforest Motion. The software supports research in Structure-from-Motion (SfM) and 3D reconstruction by enabling precise camera movements.
My Contributions

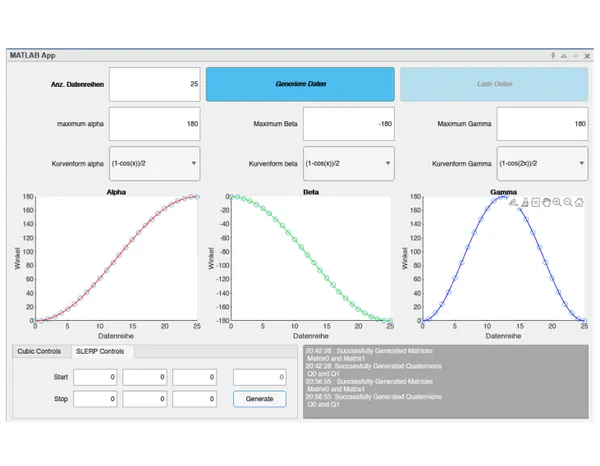

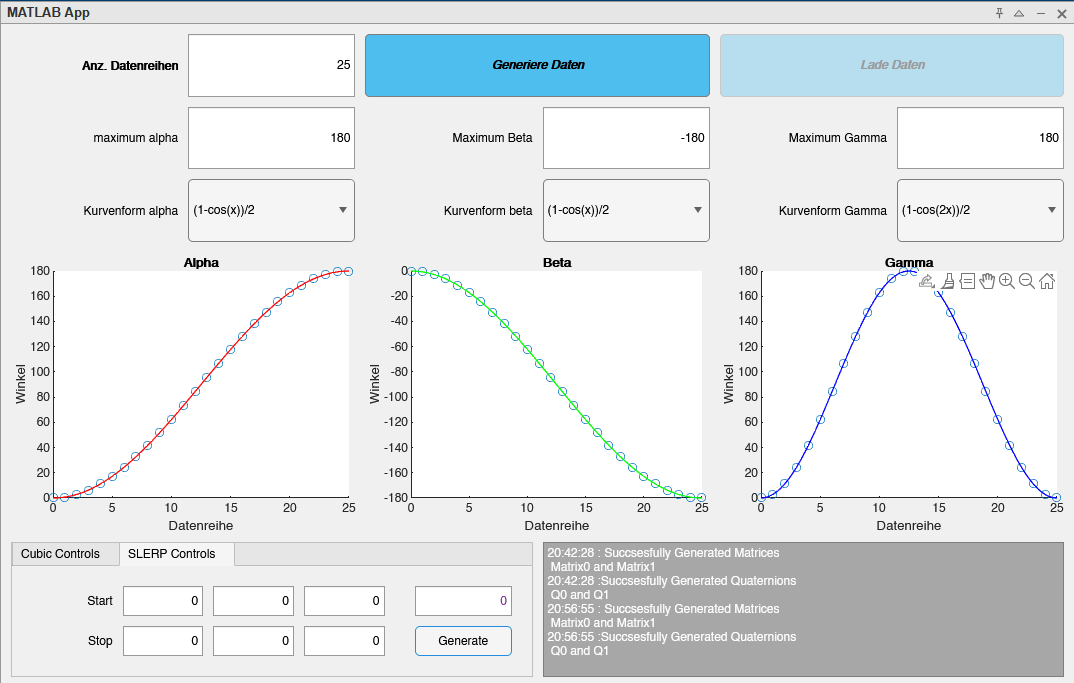

- Designed a MATLAB GUI to generate, preview, and export motion paths
- Converted Euler angles to quaternions for simpler user input and to prevent gimbal lock
- Integrated SLERP (Spherical Linear Interpolation) for smooth orientation transitions
- Generated motion sequences using the SLERP algorithm and converted them to a controller-readable format
Demo-Video
Used Technologies
Software: MATLAB (GUI, calculations, export)
Hardware: PINE Motion Controller by Blackforest Motion
